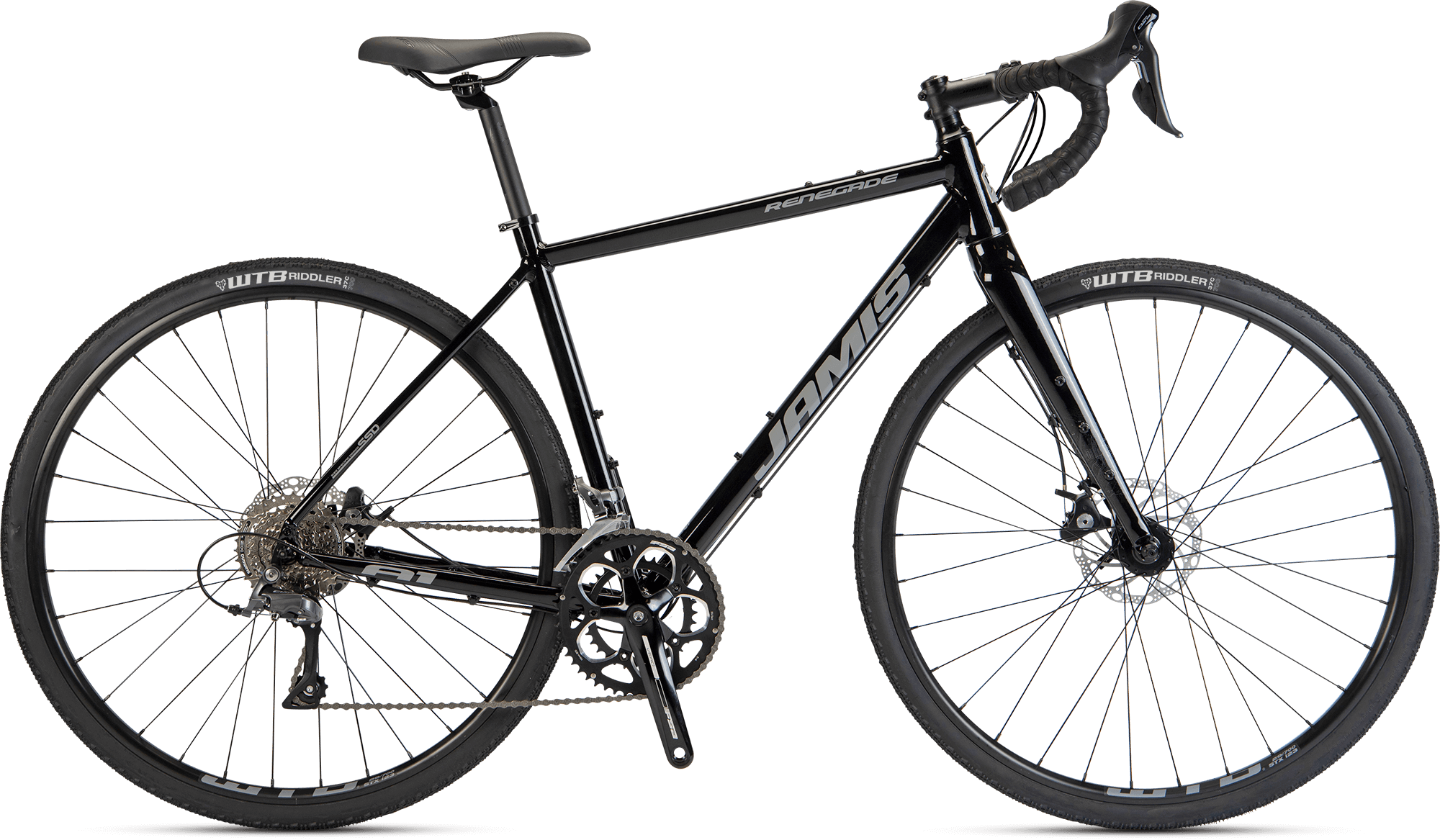

NEW 2022 Jamis Renegade A1 Gravel Bike, Gloss Black

RENEGADE
A1

Frame
UPDATED Jamis Size Specific Design frame geometry, 6061 aluminum double-butted main frame, 1.5 – 1 1/8” tapered head tube, 31.8mm seat tube for 27.2 seat post, Flat Mount disc brake mounts, downtube cable routing, replaceable derailleur hanger, 3 waterbottle mounts, TT mounts, rack and fender eyelets.

Fork
UPDATED Jamis Adventure 6061 aluminum, tapered aluminum steerer, integrated cable cradles with Flat Mount disc brake mounts, exposed fender, lowrider and 3 water bottle eyelets

Headset
FSA Orbit C-40B Internal/External, 1.5 – 1 1/8”

Wheels
WTB STX i23 TCS (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs and 14g stainless steel spokes

Tires
WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)

Derailleurs
Shimano Claris RD-R2000 GS rear and Claris FD-R2000 front with 31.8mm alloy clamp

Shift levers
Shimano Claris ST-R2000 Dual Control STI, 16-speed

Chain
KMC Z8

Cassette
Shimano HG41 8-speed, 11-34T

Crankset
FSA Vero, 50/34T, 165mm (44/48), 170mm (51) 172.5mm (54/56) 175mm (58/61)

BB Set
FSA sealed cartridge, 68 x 110.5mm

Brakeset
Tektro C310 Flat Mount mechanical cable actuated disc brake with 160mm wave rotors and Shimano Claris ST- R2000 levers

Handlebar
Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)

Stem
Jamis Road 3D forged 6061 alloy, 7 ̊ x 70mm (44), 80mm (48/51), 90mm (54/56), 110mm (58/61)

Grips
Jamis suede tape with gel inserts

Seat Post
Jamis Road, micro-adjust, 27.2 x 350mm cromo seat pin

Saddle
NEW Jamis Sport with SL top

Sizes
44cm x 650 and 48, 51, 54, 56, 58, 61cm 700c

Color
Gloss Black

Weight
24.0 lbs

Brand
Jamis

Model
Renegade A1

Color
Black, Black
