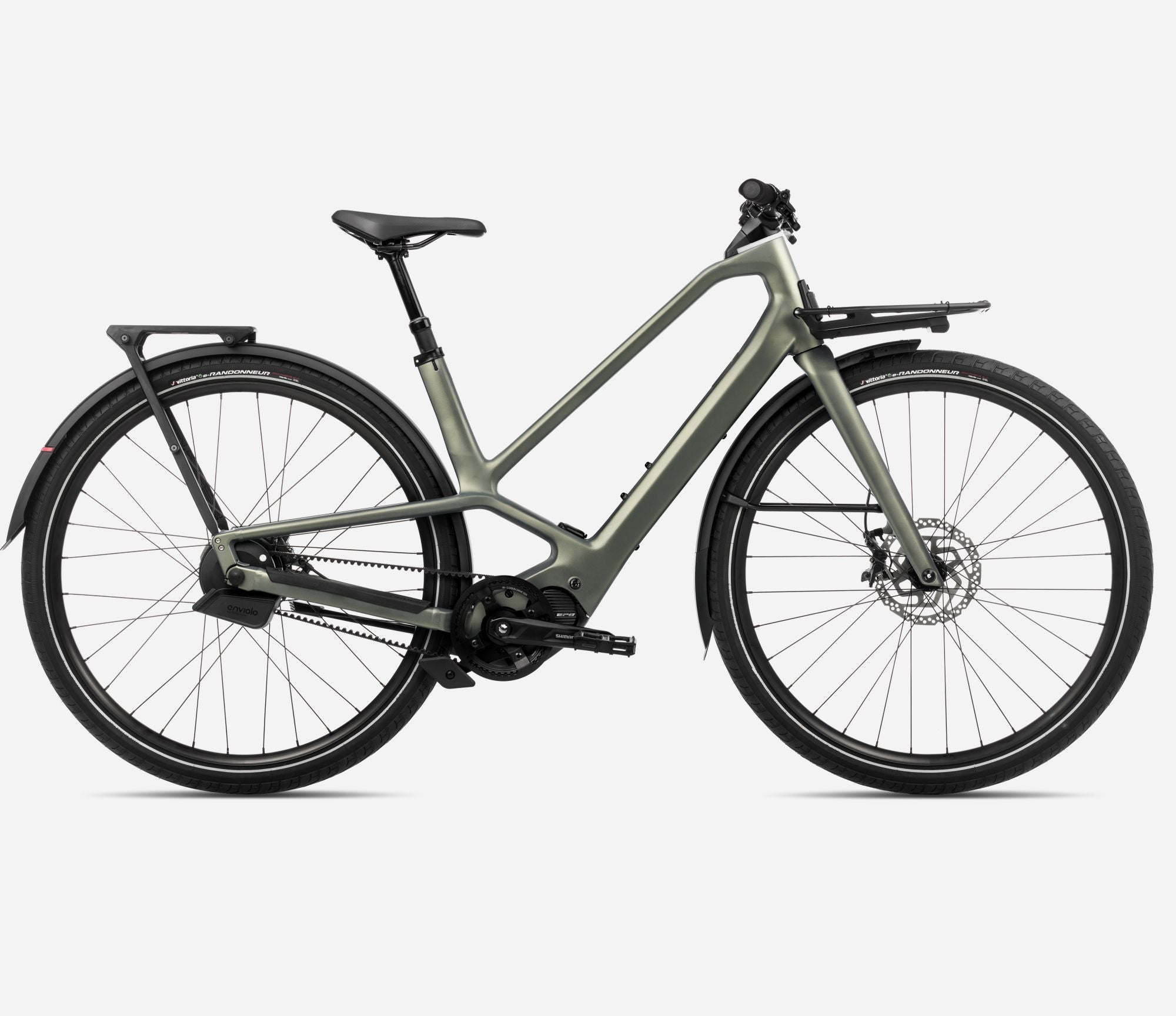

NEW 2025 Orbea Diem 10 28mph Urban Bike – 630Wh – Shimano EP801

Diem 10, the powerful urban ebike, slots into your routine, making the A to B even easier thanks to Enviolo´s maintenance free, automatic shifting and belt drive.
BUILD KIT:

Frame: Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12, headset routing, custom kickstand, Orbea Urban cockpit and equipment compatible
Fork: Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5, post mount disc mount, thru axle 12x100mm, thread M12x1, long mudguards compatible
Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
Battery: Orbea Internal 630Wh
Motor: Shimano EP801
Charger: Orbea 2nd Generation eBike Smart charger 42V/2-4A
Remote: EN600-L
Chainring: Gates CDX 46t with chainguard
Crank: Shimano Steps EM600
Cassette: Gates CDX 34t for Enviolo
Rear Derailleur: Enviolo Automatiq, BT
Chain: Gates CDX Belt
Handlebar: Orbea Urban, integrated light, rise 0, width 720
Brakes: Shimano Cues U8020 Hydraulic Disc
Wheels: Alloy, tubeless, 25c, 32H
Tyres: Vittoria e-Randonneur 50-622, reflective band
Pedals: VP-537 Black
Front Carrier: Orbea RF-01 Alloy, max 10kg with Aluminium Front Basket with net
Rear Carrier: Orbea RR-01 Alloy, with Mik & Mik Side and Ortlieb QL3.1 system, max 20kg
Mudguard: Curana Apollo Orbit 60mm
Front Position Light: Orbea integrated, USB-C charging point
Front Light: Supernova Starstream Pro, High Beam
Rear Light: Orbea Fender integrated, with alert light
Chainguard: Gates CDS
Quick Stand: Orbea Diem Integrated
Bell: Knog OI Classic
Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
Seatpost Lever: Shimano SL-MT500
Saddle: Selle Royal Vivo Ergo

SIZING: Orbea recommends the following sizes based on rider height:

SM: 4'11" - 5'9"
MD: 5'3" - 6'1"
LG: 5'7" - 6'5"
XL: 5'11" - 6'9"
