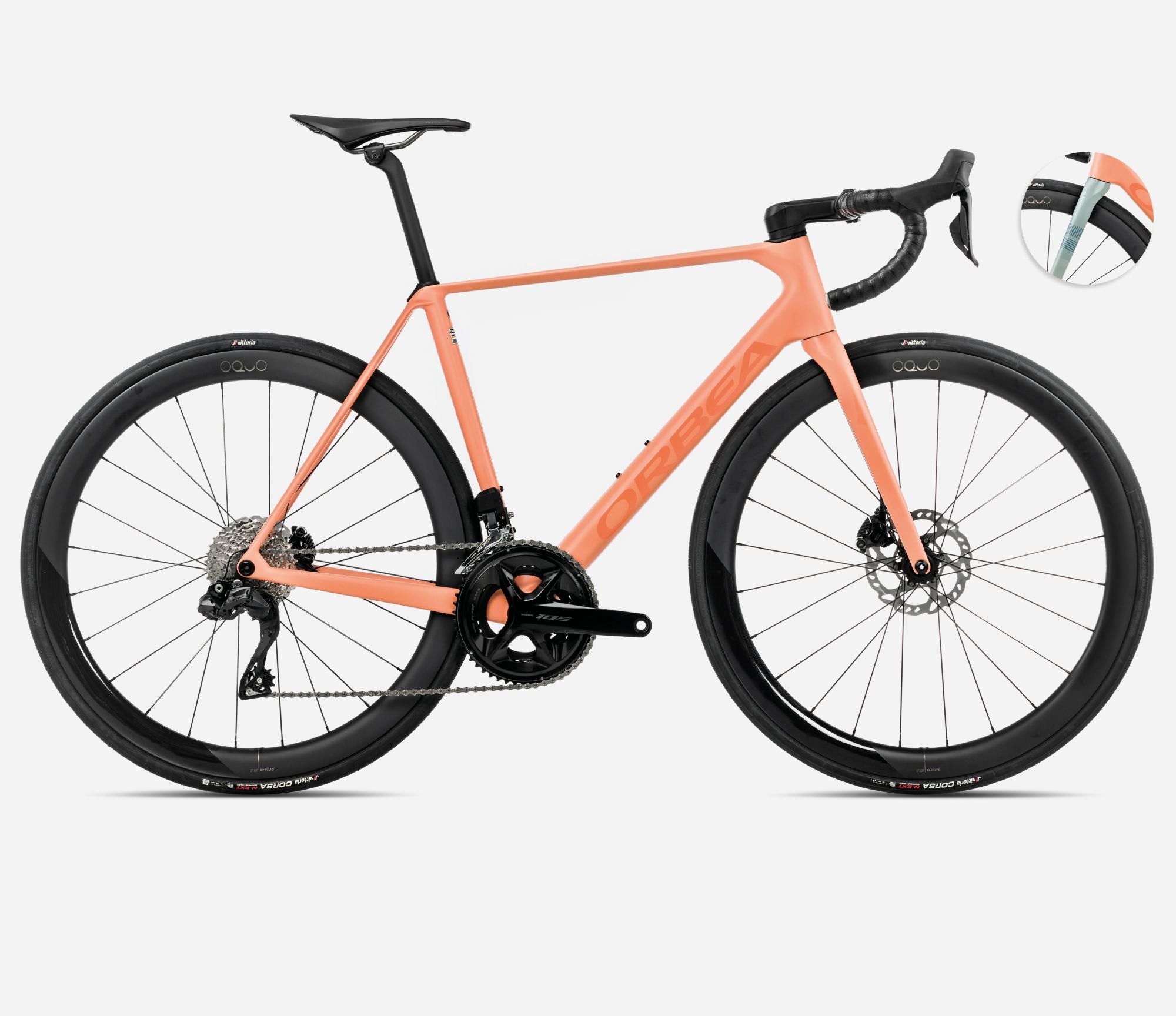

NEW 2025 Orbea Orca M30iLTD PWR Carbon Road Bike, Shimano 105 Di2 + Carbon Wheels

BUILD KIT:

Frame: Orbea Orca carbon OMX 2024, monocoque construction, HS 1.5", BB 386mm, powermeter compatible, rear thru axle 12x142mm, thread M12x2 P1, internal cable routing
Fork: Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1.5" tapered head tube compatible, thru axle 12x100mm, thread M12x2 P1
Steerer Tube: FSA 1-1/2" Integrated Aluminium Cup
Crankset: Shimano 105 R7100 36x52t with left-side 4iiii Powermeter
Shifters: Shimano Di2 R7170
Cassette: Shimano 105 R7100 11-34t 12-speed
Rear Derailleur: Shimano 105 Di2 R7150
Front Derailleur: Shimano 105 Di2 R7150
Chain: Shimano M7100
Handlebar: OC Road Performance RP11 Carbon, Reach 80, Drop 125, with Di2 hole
Stem: OC Road Performance RP11, -8º
Brakes: Shimano R7170 Hydraulic Disc
Rotors: 160mm front / 140mm rear
Wheels: Oquo Road Performance RP45LTD
Tires: Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Front Wheel Axle: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear Wheel Axle: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Seatpost: OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle: Fizik Vento Antares R3 Kium Rail 140mm

SIZING: Orbea recommends the following sizes based on rider height:

47cm: 5'1" - 5'3"
49cm: 5'3" - 5'5"
51cm: 5'6" - 5'8"
53cm: 5'8" - 5'10"
55cm: 5'11" - 6'1"
57cm: 6'1" - 6'3"
60cm: 6'4" - 6'9"
