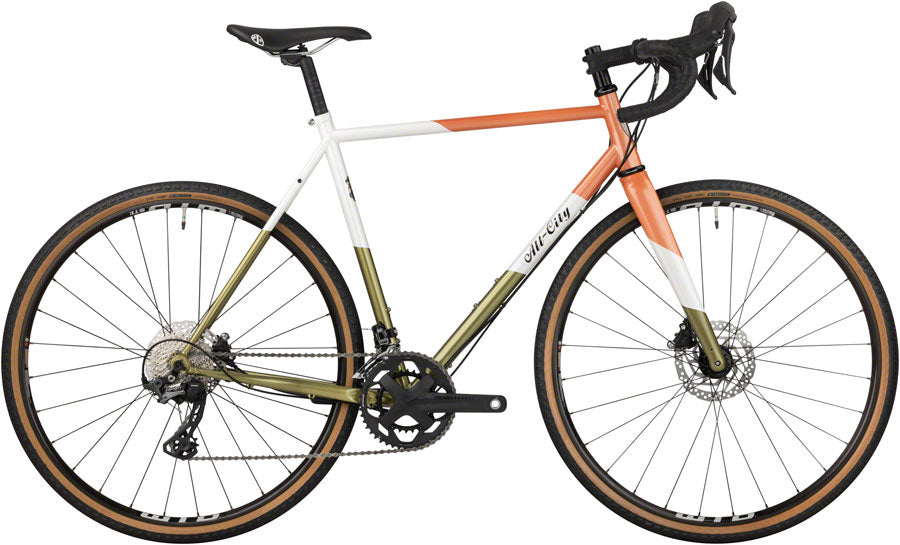

NEW All-City Cosmic Stallion – 700c, Steel, GRX Gravel Bike, Coral Moss

The Cosmic Stallion is ready for any road, and any distance. From fast mountain road rides, to all day gravel epics, this bike sets a new standard for beauty and functionality. Thoroughly modern, classically styled, all on a lightweight disc-brake frameset.

Crafted from All-City’s proprietary heat-treated, air-hardened, and custom-extruded A.C.E. steel tubing
Columbus Futura Cross Carbon Fork with 4mm adjustable rake to dial in your performance needs
12mm thru-axles and flat-mount disc brakes
Three bottle cages, rear rack mounts, front and rear fender eyelets
Tire Clearance: 700c x 47mm or 650b x 42mm (both without fenders)

Build Kit

Frame : All-City A.C.E. Air-Hardened, Custom, Extruded steel
Fork : Whisky No.9 CX Disc 12 Tapered
Front Derailleur : Shimano GRX 810
Rear Derailleur : Shimano GRX 810
Cassette/Cog : Shimano 105, 11-32t
Chain : Shimano HG 601
Crankset : FSA Omega MegaExo AGX+ 46/30t
Bottom Brcket : FSA MegaExo
Shifter(s) : Shimano GRX 600
Brakes : Shimano GRX 600
Rotors : Shimano RT26, 160mm front and rear
Headset : Cane Creek 40 Series
Stem : Whisky No.7 Black Alloy Stem; ±6° Rise
Handlebar : Whisky No.7 Black 12° Flair Drop Bar
Seatpost : Whisky No.7 Black Alloy Seatpost
Saddle : All-City Gonzo
Wheels : WTB ST Light i23 28h Rims, All City Go Devil Hubs
Tires : Teravail Cannonball Tire, 700c x 38mm, Tubeless Ready, 60 tpi Light and Supple

Sizing
Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

46cm 5' - 5'5"
49cm 5'2" - 5'8"
52cm 5'6" - 5'11"
55cm 5'9" - 6'1"
58cm 5'11 - 6'4"
61cm 6'1" - 6'6"

Geometry

Frame measurements (mm)
46cm
49cm
52cm
55cm
58cm
61cm

A. BB Drop
73
73
73
73
73
73

B. Chainstay Length
436
441
446
446
446
446

C. Fork Length - Axle to Crown
395
395
395
395
395
395

D. Fork Offset
45
45
45
45
45
45

E. Head Tube Angle (deg)
70
71
71.3
72.2
72.2
72.2

F. Headtube Length
95
110
124
149
173
198

G. Reach
371
381
384
389
397
413

H. Seat Tube Angle (deg)
75
74.5
73.7
73.5
73
72.5

I. Seat Tube Length - Center to Top
450
480
510
540
570
600

J. Stack
518
536
550
577
600
624

K. Standover
744
767
790
818
844
872

L. Top Tube Length (Effective)
510
530
545
560
580
610

M. Wheelbase
1005
1017
1028
1032
1047
1071

Component measurements (mm)

Crank Arm Length
165
165
170
170
175
175

Handlebar Width
400
420
420
440
460
460

Stem Length
60
70
80
90
100
110

Stem Angle (deg)
6
6
6
6
6
6
