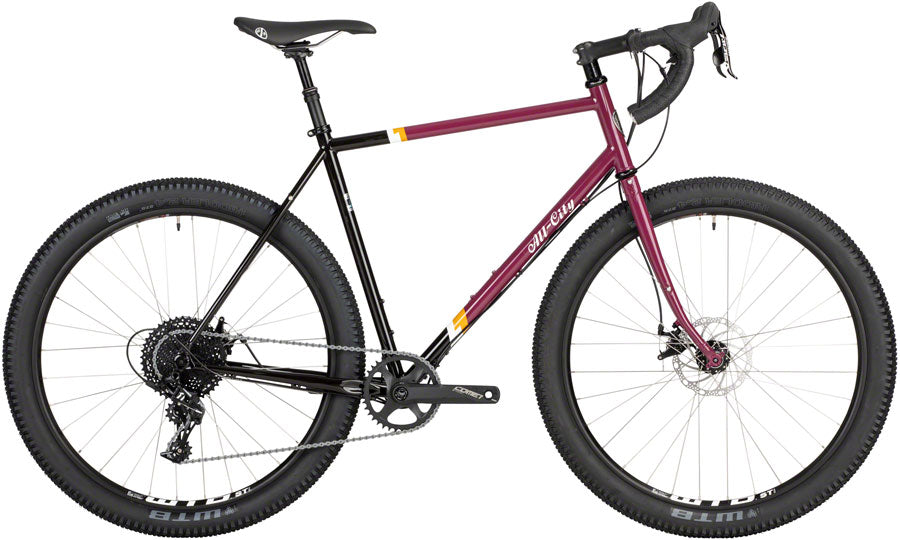

NEW All-City Gorilla Monsoon APEX All-Road/Gravel Bike, Charred Berry


A sweet beast designed for chasing good times, the Gorilla Monsoon builds on All-City’s proven cross geometry to handle camping, dirt touring, and exploring the unknown. Built around 27.5 x 2.4” tires and offered in seven frame sizes, it comfortably accommodates our smallest and tallest riders for long days in the saddle. Features like stealth dropper post routing and full touring mounts round out this elegantly styled steed.

612 Select Tubing — Selected specifically for sporty handling on the course, comfort on tours, and maximum fun
Geometry – adapted from All-City CX geo, plus the ability to support some load
73mm bottom bracket allows for a wider chainring option and ample tire clearance
Stealth dropper routing
Tire clearance – 27.5 x 2.4” or 700c x 42mm
Bi-plane fork crown features four-point rack mount and mounts for fender
Flat-mount brakes, front and rear thru-axles, 1-1/8” head tube, All-City Shot Collar, three water bottle mounts
Seven frame sizes: 43, 46, 49, 52, 55, 58, and 61cm

Build Kit

Frame : 612 Select Chromoly Steel, TIG Welded and Brazed, E.D. Coated
Fork : 612 Select Chromoly Steel, All-City Signature fork ends, Bi-Wing Crown, TIG Welded and Brazed, E.D. Coated
Rear Derailleur : SRAM APEX1, Long Cage

Cassette/Cog : SunRace 11-speed, 11/42t
Chain : KMC X11 EPT
Crankset : FSA Comet 38t, MegaEVO
Bottom Brcket : FSA MegaEVO
Shifter(s) : SRAM APEX 1x11
Brakes Levers : SRAM APEX 1x11
Brakes : Tektro MD-C550, with short cable pull
Rotors : Tektro TR160-22, 160mm, 6-bolt
Headset : Cane Creek 40 Series
Stem : JD, AL6061, 3D forged, 4-bolt stem, 31.8mm, ±6° Rise
Handlebar : JD, AL6061, 31.8mm, 12° Flair
Seatpost : TranzX JD-TSI01, 27.2, 350mm L, 50mm drop; w/TranzX DL-24 lever
Saddle : All-City Gonzo or DDK-5255
Wheels : WTB ST i25 TCS 2.0, 32h rims, Novatech Hubs
Tires : WTB Riddler, 27.5 x 2.4", TCS Light/Fast

Sizing
Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

43cm 4'11" - 5'4"
46cm 5'2" - 5'8"
49cm 5'4" - 5'9"
52cm 5'5" - 5'10"
55cm 5'9" - 6'1"
58cm 6' - 6'5"
61cm 6'1" - 6'6"
