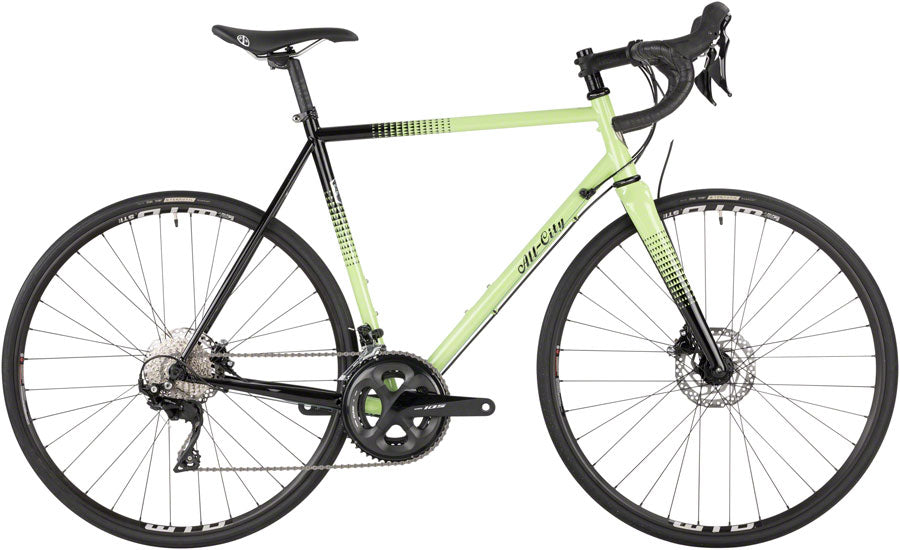

NEW All-City Zig Zag 105 – Honeydew Bling Road Bike

The Zig Zag is All-City’s answer to what a Modern Endurance Steel Road Bike should be. Elegant and eye-catching, it’s a ripping-fast and efficient machine built to shield the rider from road chatter and unnecessary fatigue. Designed for speed, style, and maximum comfort, the Zig Zag allows riders to go further, faster, and have more fun.

A.C.E. Tubing — Our proprietary heat-treated, air-hardened, extruded steel tubing that we custom designed for riding and racing
Whisky No.9 RD+ carbon fork
Whisky No.7 handlebar, stem and seatpost
A classic road silhouette blends with a contemporary road geo to balance power with comfort for long days in the saddle or attacks off the front
Clearance for 700c x 35mm tires without fenders; 700c x 32mm with fenders
Custom head badge, Signature dropouts, Signature brazed-on seat collar, pump peg, two bottle bosses, and hidden fender mounts

Build Kit

Frame : All-City A.C.E. Air-Hardened, Custom, Extruded steel
Fork : Whisky No.9 RD+ Thru-Axle Tapered
Front Derailleur : Shimano 105 R7000
Rear Derailleur : Shimano 105 R7000
Cassette/Cog : Shimano R7000 11-32
Chain : Shimano HG601
Crankset : Shimano 105 R7000 52-36
Bottom Brcket : Shimano RS500
Shifter(s) : Shimano 105 R7000
Brakes : Shimano 105 R7000 Hydro
Rotors : Shimano 6-bolt SM-RT26 160 rotors
Headset : Cane Creek 40 Series
Stem : Whisky No.7 Black Alloy Stem; ±6° Rise
Handlebar : Whisky No.7 Black 6° Flair Drop Bar
Seatpost : Whisky No.7 Black Alloy Seatpost
Saddle : Black with Chromo Rails
Wheels : WTB ST Light i19 700c 28h rims, All City Go Devil hubs
Tires : Teravail Rampart 700x28 60tpi Light and Supple

Sizing
Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase

46cm 5' - 5'5"
49cm 5'2" - 5'8"
52cm 5'6" - 5'11"
55cm 5'9" - 6'1"
58cm 5'11 - 6'4"
61cm 6'1" - 6'6"

Geometry

Frame measurements (mm)
46cm
49cm
52cm
55cm
58cm
61cm

A. BB Drop
70
70
70
70
70
70

B. Chainstay Length
415
415
415
415
420
420

C. Fork Length - Axle to Crown
386
386
386
386
386
386

D. Fork Offset
51
51
51
51
51
51

E. Head Tube Angle (deg)
70
71
72
72
72.5
72.5

F. Headtube Length
106
121
140
160.5
185.5
210.5

G. Reach
375
377
384
389
400
415

H. Seat Tube Angle (deg)
75.5
74
73.5
73
72.5
72.5

I. Seat Tube Length - Center to Top
460
490
520
550
580
610

J. Stack
524
540
562
583
607
631

K. Standover
736.9
761.4
787.7
813.4
840.1
866.4

L. Top Tube Length (Effective)
520
530
545
560
580
605

M. Wheelbase
1003.3
1006.8
1011.3
1019.35
1043.5
1065.6

Component measurements (mm)

Crank Arm Length
165
170
172.5
172.5
175
175

Handlebar Width (cm)
38
40
40
42
44
46

Seatpost Offset
0
18
18
18
18
18

Stem Length
70
80
90
100
110
110

Stem Angle (deg)
6
6
6
6
6
6
