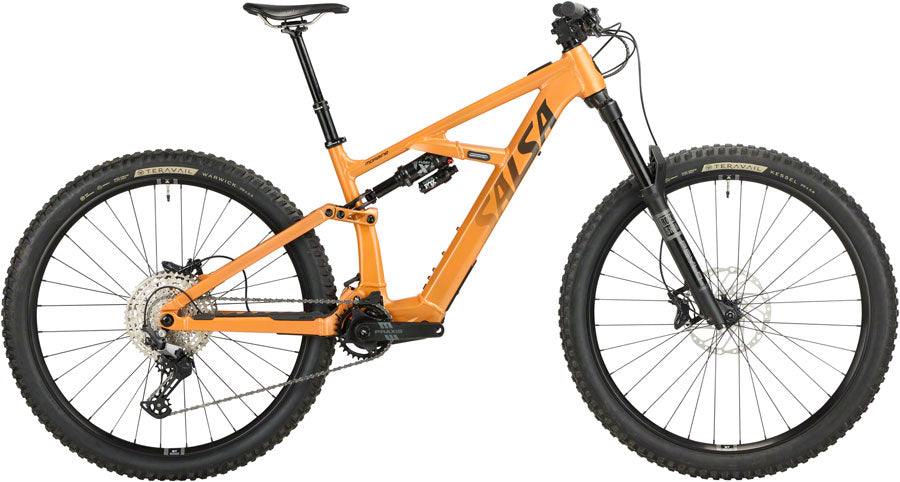

NEW Salsa Moraine Deore 12 Mountain Ebike – 29, Aluminum, Terracotta Orange

Moraine is Salsa's light electric mountain bike. It adds range, route options, and capability to every trail ride with a Fazua Ride 60 drive system and 145 mm of Split Pivot suspension. Moraine's geometry feels right at home on backcountry lines and buffed-out flow trails. Add Salsa’s on-bike cargo features, and Moraine makes riding to the trailhead, sessioning lines, and taking second laps feel like second nature.

6061-T6 aluminum frame
145mm of Split Pivot suspension to maximize traction and efficiency
Split Pivot + frame design philosophy allows riders to swap between travel classes
Fazua Ride 60 class 1 mid-drive motor (20 mph/32 kph max assist)
60Nm max torque
430Wh Fazua Energy 430 removable internal battery

BUILD KIT:

Frame: Moraine Aluminum
Suspension Fork: RockShox Psylo Gold RC, 160mm
Rear Shock: Fox Float X Performance
Drive Unit: Fazua Ride 60
E-Bike Classification: Class 1
Drive Type: Mid-drive
Max Assist Speed: 20 mph
Motor Torque: 60Nm
Range Estimate: 40 miles
Assist Levels: Breeze, River, Rocket, Boost
Walk Assist: Yes
Max Motor Assist: 450W (w/ Boost function)
Battery Capacity: 430Wh
Battery Amp Hours: 9.95Ah
Battery Voltage: 43V
Battery Type: Energy 430 Fix (Lithium-Ion)
Removable Battery: Yes (for service)
Estimated Charge Time: 3.5 hours
Charger Included: Yes
Rear Derailleur: Shimano Deore M6100-SGS
Cassette: Shimano Deore M6100-12, 10–51t, 12-speed
Chain: Shimano Deore M6100 HYPERGLIDE+
Crankset: FSA CK-730 Fazua Ride 60, 55mm CL, 104 BCD Spider, MegaTooth 34t steel chainring
Shifter: Shimano Deore M6100
Brake Levers: Shimano Deore M6100
Brake Caliper: Shimano Deore M6120, 4-piston
Rotors: Shimano Deore RT64, Center Lock, 200mm (front and rear)
Headset: FSA Orbit 1.5E ZS NO.57E
Stem: Salsa 35.0 Guide Trail, 40mm
Handlebar: RaceFace Chester 35.0, 780mm wide, SM/MD: 20mm rise; LG/XL: 35mm rise
Grips: WTB Wavelength Lock-On
Seatpost: Tranz X YSP18, SM/MD: 150mm travel; LG/XL: 170mm travel
Saddle: WTB Solano, Medium, Fusion Form, steel rail
Front Hub: Shimano TC500-15-B CLD
Rear Hub: Shimano TC500-MS-B CLD
Spokes: 2.0mm straight gauge, black
Rim: WTB ST i30 Tough TCS, 32h
Front Tire: Teravail Kessel 29 x 2.6", Durable casing, WTB TCS Sealant included (tubes installed)
Rear Tire: Teravail Warwick 29 x 2.5", Durable casing, WTB TCS Sealant included (tubes installed)
Miscellaneous: MRP 1x SL TR2 for Fazua Ride 60

SIZING: Salsa recommends the following sizes based on rider height

SM: 5'5" - 5'8"
MD: 5'8" - 5'11"
LG: 5'11" - 6'2"
XL: 6'2" and up
