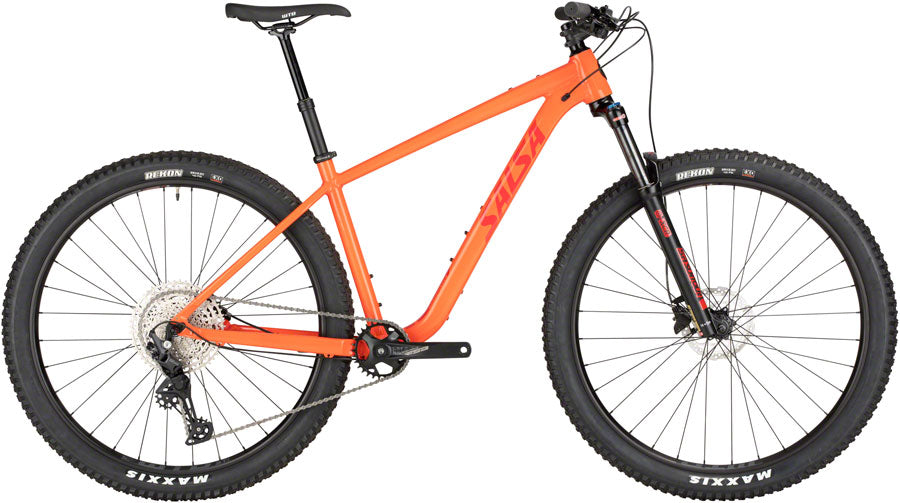

NEW Salsa Rangefinder Deore 11 29 – Orange Hardtail Mountain Bike

Rangefinder is Salsa’s confidence-building trail hardtail. Built for riders who want to start discovering their local trail systems, Rangefinder offers geometry and spec designed for the perfect introduction to mountain biking. Rangefinder opens up singletrack and doubletrack adventures and offers provisions for bikepacking setups so riders can expand their off-road repertoires. Rangefinder is mountain biking for the masses.

6061-T6 alloy frame
Internally-routed shift, brake and dropper post housing
120 mm suspension fork and dropper post
1x drivetrain keeps shifting simple with plenty of gear range
Hydraulic brakes offer confident stopping power
Compatible with 29" or 27.5 plus wheels and tires
Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
Geometry that grants confidence to newer mountain bikers

BUILD KIT:

Frame: Rangefinder Aluminum
Fork: SR Suntour XCR32 Boost, Air, LOR, DS, 120 mm OR RST Aerial 110-15, Air, MLC, 120 mm
Color: Orange
Rear Shock: N/A
Seatclamp: Salsa Lip-Lock
Front Derailleur: N/A
Rear Derailleur: Shimano Deore M5100 SGS
Cassette: Shimano Deore M5100 11–51t, 11-speed
Chain: Shimano HG601
Crankset: FSA Alpha Drive, 30t, FSA 124.5 mm bottom bracket
Shifter: Shimano Deore M5100
Brakes: Shimano MT200 OR Promax DSK-925
Rotors: Shimano RT10 Center Lock rotors (160 mm)
Headset: FSA Orbit NO.57B 1.5 ZS
Stem: Salsa Guide 31.8, 60 mm
Handlebar: Salsa Salt Flat 31.8, 750 mm width XS–SM; Salsa Rustler 31.8, 800 mm width M–XL
Grips / Bar Tape: Salsa File Tread
Seatpost: TranzX YSP18PLQ 100 x 361 mm XS–SM; 130 x 425 mm MD–XL
Saddle: WTB Volt Medium, Steel, 142 x 265 mm

Front Wheel: Shimano MT400 Center Lock 15 x 110 mm hub, WTB ST i30 32h 29" rim
Rear Wheel: Shimano MT200 Center Lock 10 x 141 mm QR hub, WTB ST i30 32h 29" rim
Tires: Maxxis Rekon 29 x 2.6", EXO Wire Bead (not tubeless compatible)

GEOMETRY

Size
XS
SM
MD
LG
XL

Recommended Rider Height
5'2"–5'6"
5'3"–5'9"
5'8"–6'0"
5'11"–6'3"
6'2"–UP

A. Toptube Effective
22.4"
23.2"
24.2"
25.3"
26.4"

B. Seat Tube Length
14.0"
15.0"
17.0"
18.5"
20.0"

C. Headtube Angle
68.0°
68.0°
68.0°
68.0°
68.0°

D. Seat Tube Angle
74.0°
74.0°
74.0°
74.0°
74.0°

E. BB Drop
2.3"
2.3"
2.3"
2.3"
2.3"

F. Chainstay Length
17.3"
17.3"
17.3"
17.3"
17.3"

G. Headtube Length
3.7"
3.9"
4.1"
4.5"
4.9"

H. Fork Length
20.1"
20.1"
20.1"
20.1"
20.1"

J. Fork Offset
1.8"
1.8"
1.8"
1.8"
1.8"

K. Wheelbase
43.3"
44.2"
45.2"
46.4"
47.5"

M. Stack
23.8"
24.0"
24.2"
24.6"
24.9"

N. Reach
15.6"
16.4"
17.3"
18.3"
19.3"

P. Standover
26.7"
27.5"
29.0"
30.3"
31.4"
