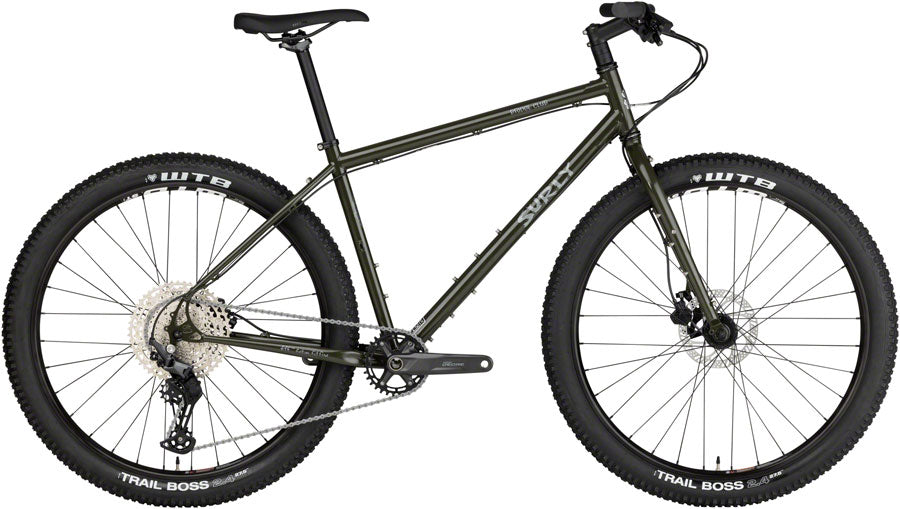

NEW Surly Bridge Club 27.5 Steel Flat Bar Gravel Bike – Majestic Moss

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.

100% Surly Chromoly frame, main triangle is double-butted; 1-1/8" threadless Chromoly fork
Rack, fender, and four sets of three-pack mounts
Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category
Durable 700c wheel build, including Surly Extra Terrestrial 700 x 41mm tires
Swept-back comfort and off-road capable Surly Terminal Handlebar
Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8" tires (27.5 x 2.6" with fenders)

Build Kit

Frame : 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork : "100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Rear Derailleur : Shimano Deore RD-M5100, Shadow Plus
Cassette : Shimano Deore 11-speed, 11-51t
Chain : KMC X11
Crankset : Shimano Deore FC-M100, 32t
Shifter(s) : Shimano Deore SL-M5100-R
Brakes : Tektro Hydro HD-M275/276
Rotors : 160F/160R
Headset : Cane Creek
Stem : Promax 31.8
Handlebar : Salsa Bend
Seatpost : Promax 27.2mm
Saddle : WTB Volt
Wheels : WTB ST i29 TCS, Novatech Hubs
Tires : WTB Trail Boss 27.5 x 2.4", 27tpi, wire bead

Sizing
Based on traditional geometry . Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

XS: 5' - 5'5"
SM: 5'4" - 5'8"
MD: 5'7" - 6'
LG: 5'11" - 6'3"
XL: 6'2" - 6'6"

Geometry

Frame measurements (mm)
XS
SM
MD
LG
XL

A. BB Drop
60
60
60
60
60

B. Chainstay Length
435
435
435
435
435

C. Fork Length - Axle to Crown
420
420
420
420
420

D. Fork Offset
43
43
43
43
43

E. Head Tube Angle (deg)
70
71
71
71
71

F. Headtube Length
110
120
130
145
165

G. Reach
376
397
419
434.5
444

H. Seat Tube Angle (deg)
73
73
73
73
73

I. Seat Tube Length - Center to Top
335.6
406.4
457.2
508
558.8

J. Stack
553
567
576
590
609

K. Standover
709
750.5
780
812
845.5

L. Top Tube Length (Effective)
545
570
595
615
630

M. Wheelbase
1032
1047.5
1073
1093
1109

Component measurements (mm)

Crank Arm Length
170
170
175
175
175

Handlebar Width
700
700
740
740
740

Stem Length
80 or 90
80 or 90
90
90
80, 90, or 100

Stem Angle (deg)
7
7
7
7
7
