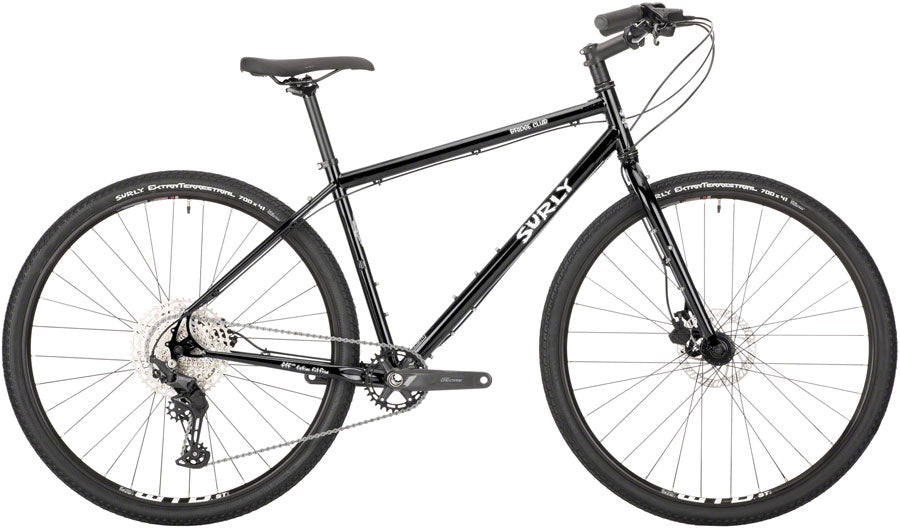

NEW Surly Bridge Club 700c – Black Touring Bike

As a highly versatile touring bike, the Bridge Club hits the sweet spot that separates on- and off-road excursions. The simplistic design makes it fully adept to handle a full rack and pannier setup, frame bags, or any combination of the two. It doesn’t feel sluggish on paved shortcuts, but can also hold its own on dirt detours. If you’re feeling a little zesty on your next road tour, you won’t be ill-prepared for reroutes through the woods. The Bridge Club is designed to handle it all.

100% Surly 4130 CroMoly frame, main triangle is double-butted; 1-1/8" threadless CroMoly fork
Rack, fender, and four sets of Three-Pack mounts
Disc brake-specific, single-position vertical rear dropout makes it less intimidating than other bikes in the category
Durable 700c wheel build, including Surly Extra Terrestrial 700 x 41mm tires
Swept-back comfort and off-road capable Surly Terminal Handlebar
Clearance for 700 x 47mm (with or without fenders) or 27.5 x 2.8" tires (27.5 x 2.6" with fenders)

Build Kit

Frame : 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork : 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
Rear Derailleur : Shimano Deore M5100 Shadow Plus
Cassette : Shimano Deore CSM5100 11-51t
Chain : KMC X11 EPT
Crankset : Shimano Deore M5100 32t
Bottom Brcket : Shimano BSA
Shifter(s) : Shimano Deore M5100 Rapid Fire
Brakes Levers : Tektro HD-M275
Brakes : Tektro HD-M275
Rotors : 160mm F/R
Headset : Cane Creek 40
Stem : Promax, 31.8mm
Handlebar : Surly Terminal Bar
Seatpost : Promax, 27.2mm
Saddle : WTB Volt 142
Wheels : WTB ST i21 TCS, Novatech Hubs
Tires : Surly Extraterrestrial 700x41, 60tpi Tubeless Ready

Sizing
Based on traditional geometry . Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.

XS: 5' - 5'5"
SM: 5'4" - 5'8"
MD: 5'7" - 6'
LG: 5'11" - 6'3"
XL: 6'2" - 6'6"

Geometry

Frame measurements (mm)
XS
SM
MD
LG
XL

A. BB Drop
60
60
60
60
60

B. Chainstay Length
435
435
435
435
435

C. Fork Length - Axle to Crown
420
420
420
420
420

D. Fork Offset
43
43
43
43
43

E. Head Tube Angle (deg)
70
71
71
71
71

F. Headtube Length
110
120
130
145
165

G. Reach
376
397
419
434.5
444

H. Seat Tube Angle (deg)
73
73
73
73
73

I. Seat Tube Length - Center to Top
335.6
406.4
457.2
508
558.8

J. Stack
553
567
576
590
609

K. Standover
709
750.5
780
812
845.5

L. Top Tube Length (Effective)
545
570
595
615
630

M. Wheelbase
1032
1047.5
1073
1093
1109

Component measurements (mm)

Crank Arm Length
170
170
175
175
175

Handlebar Width
718
718
735
735
735

Handlebar Rise / Drop
-
-
-
-
-

Stem Length
80
80
90
90
90

Stem Angle (deg)
6
6
6
6
6
