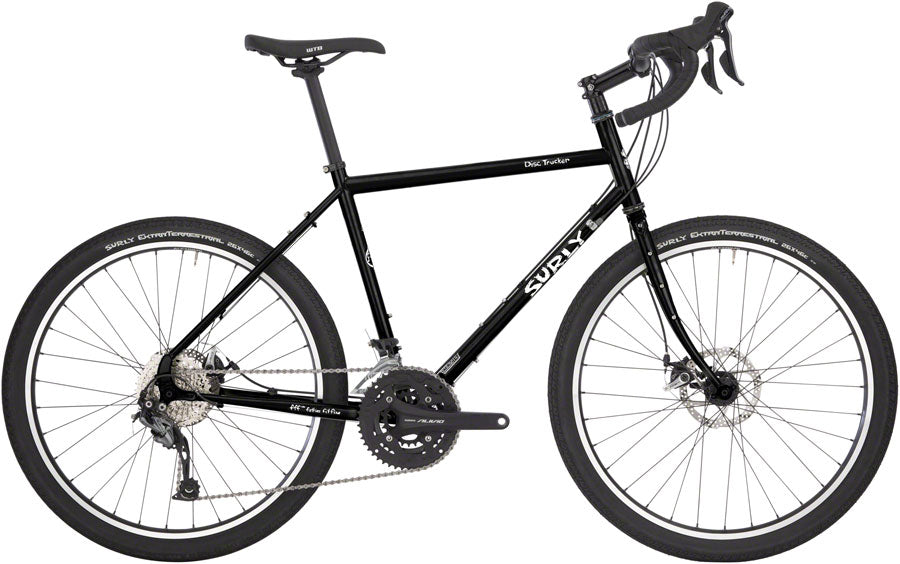

NEW Surly Disc Trucker – Surly Disc Trucker Touring Bike – 700c, Steel, Hi-Viz Black

A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.

100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life
Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough
Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs
Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes
Clearance for 700c x 47mm with or without fenders

Build Kit

Frame : 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork : 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Front Derailleur : Shimano Sora R3030
Rear Derailleur : Shimano Alivio M4000 SGS
Cassette/Cog : Shimano Alivio, 11-34t, 9 speed
Chain : KMC X9
Crankset : Shimano Alivio 48x36x26t
Bottom Brcket : Shimano SM-BB52
Shifter(s) : Shimano Sora 3x9
Brakes Levers : Shimano Sora
Brakes : TRP Spyre C
Rotors : 160mm front and rear
Headset : Cane Creek 40, 1-1/8"
Stem : ProMax 31.8 4 bolt
Handlebar : Surly Truckstop Bar
Seatpost : ProMax 27.2, 350L, non-offset (42-50), offset (52-64)
Saddle : WTB Volt Sport
Wheels : Alex Adventurer 2 Rims, Novatech Hubs, Tubeless Ready
Tires : Surly ExtraTerrestrial 700x41

Sizing
Surly recommends the following sizes based on rider height:

56cm 5'8" - 6'
58cm 5'10" - 6'3"
60cm 6' - 6'5"
62cm 6'2" - 6'7"
64cm 6'5" - 6'9"

Geometry in mm

Frame measurements (mm)
56cm
58cm
60cm
62cm
64cm

A. BB Drop
80
80
80
80
80

B. Chainstay Length
450
450
450
450
450

C. Fork Length - Axle to Crown
390
390
390
390
390

D. Fork Offset
45
45
45
45
45

E. Head Tube Angle (deg)
72
72
72
72
72

F. Headtube Length
175
195
215
235
250

G. Reach
387.5
391
400
402
412.5

H. Seat Tube Angle (deg)
73
72.5
72.5
72
72

I. Seat Tube Length - Center to Top
560
580
600
620
640

J. Stack
613
632
651.5
670.5
685

K. Standover
813
832
851
869
885.5

L. Top Tube Length (Effective)
575
590
605
620
635

M. Wheelbase
1051
1060
1075.5
1084
1090

Component measurements (mm)

Crank Arm Length
175
175
175
175
175

Handlebar Width
480
480
480
480
480

Handlebar Rise / Drop
30
30
30
30
30

Stem Length
100
100
110
120
120

Stem Angle (deg)
6
6
6
6
6
