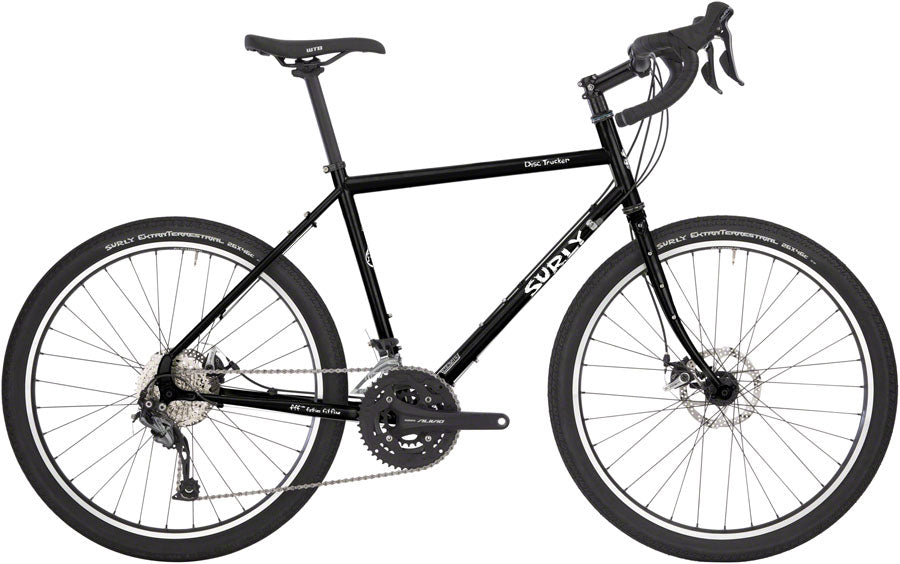

NEW Surly Disc Trucker Touring Bike – 26, Steel, Hi-Viz Black

A class-leading touring bike, the newly redesigned Disc Trucker provides versatility and dependability on the daily commute or trans-continental excursion. Fork blade three-pack mounts enable you to attach and haul even more stuff, and the frame features a low bottom bracket and long chainstays for comfort and stability while loaded down. With increased stack height and improved stand-over clearance, plus ample space for larger tires and fenders, it’s designed to go the distance.

100% Chromoly steel frame and fork; double-butted main triangle and E.D. coating for increased frame life
Braze-ons for fenders, racks, and almost anything else you might want to stick on your bike, plus spare spoke holders for when the road gets rough
Fork blade three-pack mounts for even more mounting options, plus routing for Dynamo hubs
Redesigned front and rear dropouts to accommodate captured 12mm thru-axles and flat-mount disc brakes
Clearance for 26 x 2.1" tires with or without fenders
Due to a performance issue, we have made a spec change to the front derailleur of the 26" Disc Trucker. A new derailleur will be included in the bike box along with the appropriate shims needed for proper install

Build Kit

Frame : 4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
Fork : 4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated
Front Derailleur : Shimano Sora R3030
Rear Derailleur : Shimano Alivio M4000 SGS
Cassette/Cog : Shimano Alivio, 11-34t, 9 speed
Chain : KMC X9
Crankset : Shimano Alivio 48x36x26t
Bottom Brcket : Shimano SM-BB52
Shifter(s) : Shimano Sora 3x9
Brakes Levers : Shimano Sora
Brakes : TRP Spyre C
Rotors : 160mm front and rear
Headset : Cane Creek 40, 1-1/8"
Stem : ProMax 31.8 4 bolt
Handlebar : Surly Truckstop Bar
Seatpost : ProMax 27.2, 350L, non-offset (42-50), offset (52-64)
Saddle : WTB Volt Sport
Wheels : Alex Adventurer 2, Novatech QR Hubs
Tires : Surly ExtraTerrestrial 26x46

Sizing
Surly recommends the following sizes based on rider height:

42cm 4'5" - 4'10"
46cm 4'8" - 5'1"
50cm 5' - 5'5"
52cm 5'2" - 5'8"
54cm 5'5" - 5'10"
56cm 5'8" - 6'

Geometry in mm

Frame measurements (mm)
42cm
46cm
50cm
52cm
54cm
56cm

A. BB Drop
50
50
50
50
50
50

B. Chainstay Length
450
450
450
450
450
450

C. Fork Length - Axle to Crown
376
376
376
376
376
376

D. Fork Offset
45
45
45
45
45
45

E. Head Tube Angle (deg)
70
70
71
71
71
71

F. Headtube Length
125
130
170
185
205
225

G. Reach
362
371
369
374.5
378
387.5

H. Seat Tube Angle (deg)
75
74.5
74
73.5
73
73

I. Seat Tube Length - Center to Top
420
460
500
520
540
560

J. Stack
515
520
561
575.5
594.5
613

K. Standover
710
731
766
782
800
819.5

L. Top Tube Length (Effective)
500
515
530
545
560
575

M. Wheelbase
1026
1037
1040
1050
1060.5
1076

Component measurements (mm)

Crank Arm Length
165
165
170
170
170
175

Handlebar Width
420
420
420
450
450
480

Handlebar Rise / Drop
30
30
30
30
30
30

Stem Length
70
70
70
90
100
100

Stem Angle (deg)
6
6
6
6
6
6
