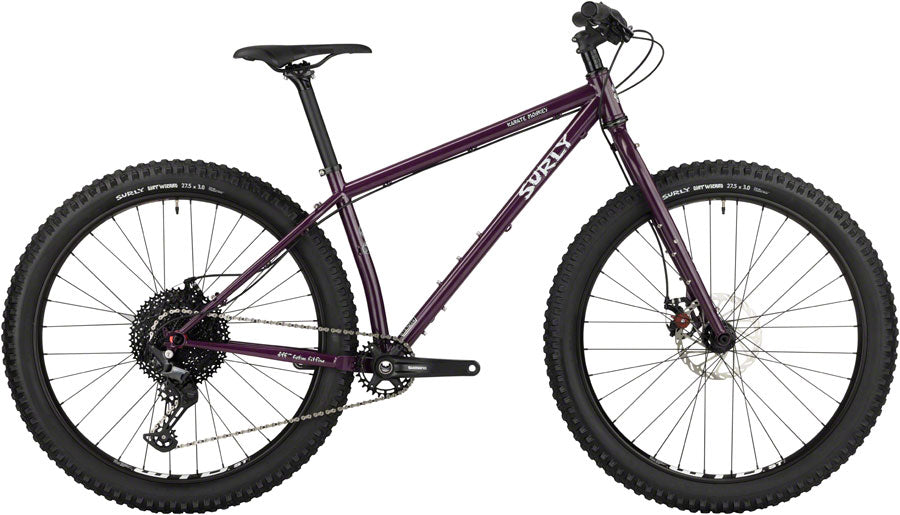

NEW Surly Karate Monkey Steel Rigid Mountain Bike – Organic Eggplant

The Karate Monkey features updated, progressive trail geometry, our custom trumpet tubeset and Surly’s Gnot-Boost rear dropout system. Available in a variety of colors, with multiple drivetrain and wheel size configurations.

100% Surly Chromoly steel frame and fork; double-butted main triangle and 44mm headtube
The tubeset uses the same trumpet tubes found on Instigator 2.0 frame
Adjustable rear dropouts with 145mm Gnot-Boost spacing. Works with 142, 148 12mm thru, as well as 135mm w/ 10/12 washer
Internal dropper seatpost routing with 30.9mm seat tube ID
Clearance for 29 x 2.55 or 27.5 x 3 tires

BUILD KIT:

Frame: 100% Surly Chromoly Steel, Custom double-butted, externally flared tubing, Horizontal slotted with derailleur hanger, Surly “Gnot Boost” 142 or 148mm hub spacing compatibility
Fork: 100% Surly Chromoly Steel, 483mm axle-to-crown x 47mm offset, 110mm hub spacing, Tapered and butted straight blade, 4130 Chromoly, 51mm I.S. disc mount
Crankset: Shimano Deore FC-MT510-1, 30t
Bottom Bracket: Shimano (included with crankset)
Front Derailleur: N/A
Rear Derailleur: Shimano Deore RD-M6100, 12-speed
Cassette / Cog: SunRace CSMZ800, 11-51t, 12-Speed
Chain: KMC X12 NP/BK
Grips / Bar Tape: Velo lock-on
Handlebar: Salsa Rustler without logo
Stem: ProMax, 31.8
Headset: Cane Creek 15
Rear Shifter: Shimano Deore SL-M6100
Brake & Rotors: Tektro HD-M275, 180mm front & 160mm rear
Saddle: WTB Volt 142
Seatclamp: Surly stainless, 33.1mm
Seatpost: ProMax, 30.9
Front Hub: 110mm, Novatec, 32h, Thru-Axle
Rear Hub: 148mm, Novatec, 32h, Thru-Axle
Rims: WTB i40 TCS
Tires: Surly Dirt Wizard 29 x 3”, 60 tpi, Tubeless Ready

SIZING: Surly recommends the following sizes based on rider height:

XS : 5' - 5'5"
SM : 5'4" - 5'8"
MD : 5'7" - 6'
LG : 5'11" - 6'3"
XL : 6'2" - 6'6"
