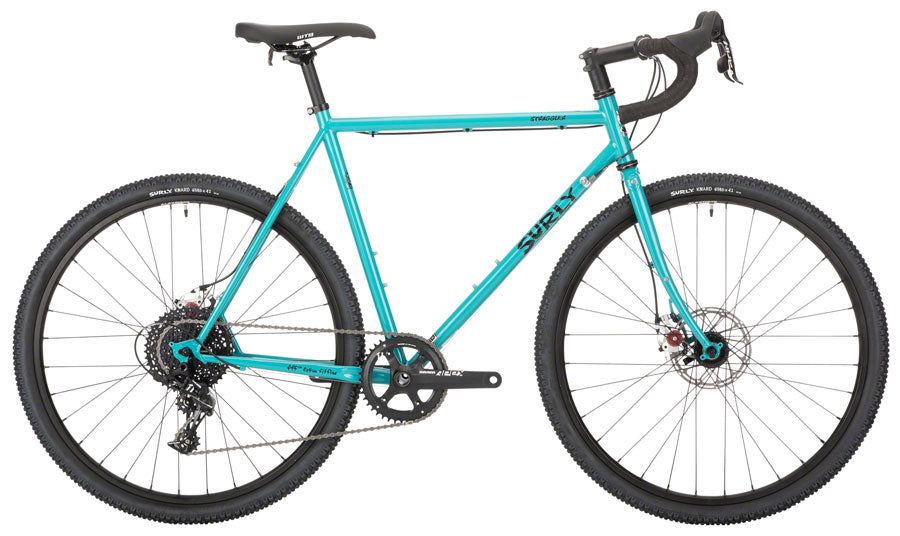

NEW Surly Straggler Cyclocross Gravel Bike – 650b, Steel, Chlorine Dream

Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.

Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts, downtube shifter mounts
100% Surly proprietary 4130 chromoly tubing. TIG-welded, double-butted main triangle
Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run.
Frame is ED Coated for increased life expectancy

Build Kit

Frame : 100% Surly Chromoly tubing. E.D. Coated. TIG-welded. Double-butted main triangle.
Fork : 100% Surly Chromoly steel. Disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets.
Rear Derailleur : SRAM Apex 1x11
Cassette/Cog : SunRace CSMS7, 11–42t, 11-speed
Chain : CNP1110
Crankset : SRAM FC Apex 42t
Bottom Brcket : SRAM GXP
Shifter(s) : SRAM Apex 1x11
Brakes : SRAM Avid BB7 Road
Rotors : 160mm rotors front & rear
Headset : Cane Creek 40, 1-1/8"
Stem : 31.8, 4-bolt
Handlebar : Salsa Cowbell
Seatpost : Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm
Saddle : WTB Volt 142
Wheels : Alex Adventurer 2, Novatech Hubs, Tubeless Ready
Tires : Surly Knard 700c x 41mm, 33 tpi & 650b x 41mm, 33 tpi

Sizing
Surly recommends the following sizes based on rider height:

38cm 4'2" - 4'7"
42cm 4'5" - 4'10"
46cm 4'8" - 5'1"
50cm 5' - 5'5"
52cm 5'2" - 5'8"
54cm 5'5" - 5'10"
56cm 5'8" - 6'
58cm 5'10" - 6'3"

Geometry

Frame measurements (mm)
38cm
42cm
46cm
50cm
52cm
54cm

A. BB Drop
54
54
54
54
54
54

B. Chainstay Length
405
405
405
405
405
410

C. Fork Length - Axle to Crown
380
380
380
380
380
380

D. Fork Offset
44
44
44
44
44
44

E. Head Tube Angle (deg)
69.5
70
71
71.5
72
72

F. Headtube Length
85
100
110
120
130
145

G. Reach
371
369
371
383
386
392

H. Seat Tube Angle (deg)
75.5
74.5
74
74
73
72.5

I. Seat Tube Length - Center to Top
380
420
460
500
520
540

J. Stack
483
498
511
523
534
548

K. Standover
704
726
751
776
789
806

L. Top Tube Length (Effective)
500
510
520
535
550
565

M. Wheelbase
980
978
977
988
990
1005

Component measurements (mm)

Crank Arm Length
165
165
165
170
172.5
172.5

Handlebar Width (cm)
38
38
40
40
42
42

Handlebar Rise / Drop
-
-
-
-
-
-

Stem Length
60
60
70
80
100
100

Stem Angle (deg)
6
6
6
6
6
6
