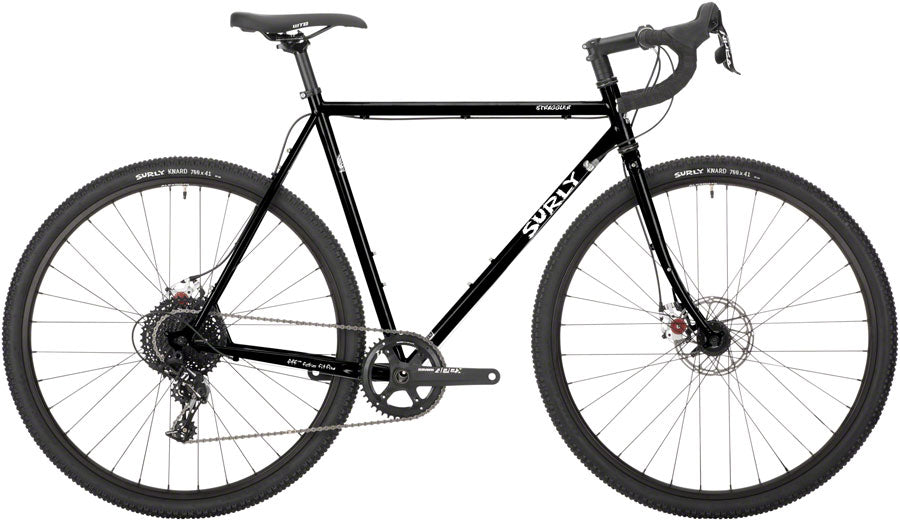

NEW Surly Straggler Cyclocross Gravel Bike – 700c, Steel, Black

Straggler shares all of the Cross-Check's braze-ons for fenders, racks and bottle cages, and like the Cross-Check its ready to take you just about anywhere. It's a day tripper and a weekender. It's a 'rough road' road bike. It's a cyclocross bike with no pretense about racing. It's a utilitarian townie. It's a light-duty touring bike. It's an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else.

Fender eyelets at the dropouts, front and rear rack bosses and dual water bottle mounts, downtube shifter mounts
100% Surly proprietary 4130 chromoly tubing. TIG-welded, double-butted main triangle
Forward-exiting horizontal dropouts with adjusters give you singlespeed compatibility and wheelbase adjustability to help you fit the tires and fenders you want to run with that drivetrain you want to run.
Frame is ED Coated for increased life expectancy

Build Kit

Frame : 100% Surly Chromoly tubing. E.D. Coated. TIG-welded. Double-butted main triangle.
Fork : 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated100% Surly Chromoly steel. Disc only, lugged and brazed. Sloping crown with threaded eylets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets.
Rear Derailleur : SRAM Apex 1x11
Cassette : SunRace CSMS7, 11–42t, 11-speed
Chain : CNP1110
Crankset : SRAM FC Apex 42t
Bottom Brcket : SRAM GXP
Shifter(s) : SRAM Apex 1x11
Brakes : SRAM Avid BB7 Road
Rotors : 160mm F/R
Headset : Cane Creek 40, 1-1/8"
Stem : 31.8, 4-bolt
Handlebar : Salsa Cowbell
Seatpost : Promax SP-2016 offset on 54-64cm frames, 27.2 x 350mm
Saddle : WTB Volt 142
Wheels : Alex Adventurer 2 Rims, Novatech Hubs, Tubeless Ready
Tires : Surly Knard 700c x 41mm, 33 tpi & 650b x 41mm, 33 tpi

Sizing
Surly recommends the following sizes based on rider height:

54cm 5'5" - 5'10"
56cm 5'8" - 6'
58cm 5'10" - 6'3"
60cm 6' - 6'5"
62cm 6'2" - 6'7"

Geometry in mm

Frame measurements (mm)
54cm
56cm
58cm
60cm
62cm

A. BB Drop
72
72
72
72
72

B. Chainstay Length
425
430
430
430
430

C. Fork Length - Axle to Crown
400
400
400
400
400

D. Fork Offset
44
44
44
44
44

E. Head Tube Angle (deg)
72.0
72.0
72.0
72.0
72.0

F. Headtube Length
107
121
146
165
185

G. Reach
396.3
400.7
408.2
412.1
420.9

H. Seat Tube Angle (deg)
73.0
72.5
72.5
72.0
72.0

I. Seat Tube Length - Center to Top
540
560
580
600
620

J. Stack
549.2
567.3
591.1
609.1
628.2

K. Standover
791.7
809.4
828.7
846.1
865.0

L. Top Tube Length (Effective)
565
580
595
610
625

M. Wheelbase
1016.5
1031.9
1047.0
1056.8
1071.8
